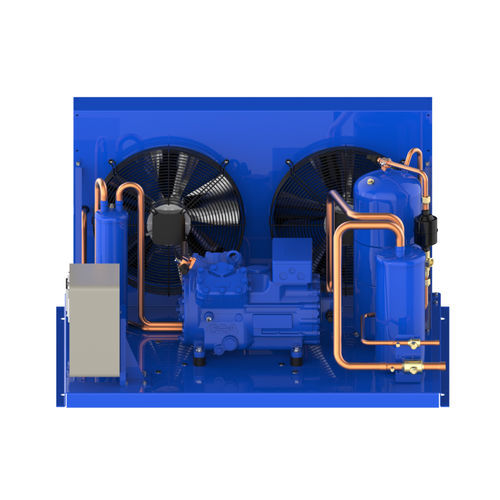

Semi-hermetic condensing unit Optyma™

air-cooled

Segment usage: Medium Back Pressure, Refrigerants: R404A; R22, Compressor power supply [V]: 220/3/60 Product details Gross weight - 217 Kg Net weight - 202 Kg Air flow @ 60Hz [m³/h] - 8850 m³/h Applications - MBP Capacity control - Fixed speed Compressor model - HGX34E/315-4S Compressor power supply [V] - 220/3/60 Condenser type - N8 Description - HBZ315D49Q Electrical code - Q Fan blade size [mm] - 450 mm Fan current @ 60Hz [A] - 2.6 A Fan power supply [V/Ph/Hz] - 230/1/60 Frequency [Hz] - 60 Hz High value of nominal voltage at 60Hz [V] - 230 V Net weight - 202 Kg In scope of WEEE and contain batteries - No Low value of voltage range at 60Hz [V] - 200 V No. of phases (compressor) - 3 No. of phases (fan) - 1 Number of fans - 2 Phase - 3 Product group - Condensing Units Product Name Description - Bare unit Refrigerants - R22 R404A Segment usage - Medium Back Pressure Speed Platform - Fixed-speed Version - D49 Voltage 60Hz [V] - 220 V Voltage 60Hz [V] [Max] - 240 V
