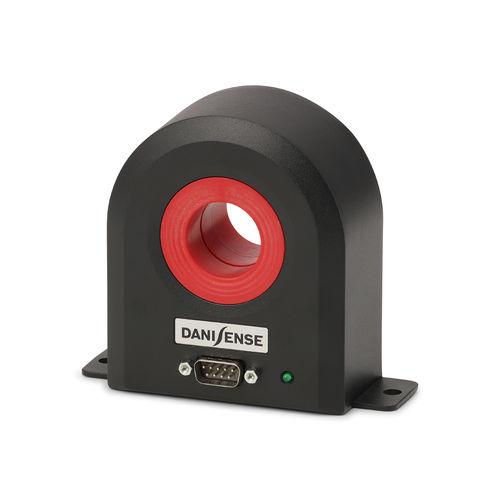

Fluxgate current transducer DS50ID
fixedACDC

Fluxgate current transducer - DS50ID - Danisense - fixed / AC / DC
Fluxgate current transducer - DS50ID - Danisense - fixed / AC / DC
Add to favorites
Compare this product


Characteristics

Technology
fluxgate
Mounting
fixed
Electrical characteristics
AC, DC
Other characteristics
precision, through-hole
Primary current

Min.: 0 A

Max.: 150 A

Description

Ultra-stable, high precision (ppm class) fluxgate technology DS Series current transducer for non-intrusive, isolated DC and AC current measurement up to 150A Features Linearity error maximum 8 ppm Fluxgate, closed loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for best in class accuracy and stability Industry standard DSUB 9 pin connection Green diode for normal operation indication Full aluminum body for superior EMI shielding and extended operating temperature range Large aperture  27.6mm for cables and bus bars

Catalogs

DS50ID
DS50ID
6 Pages
