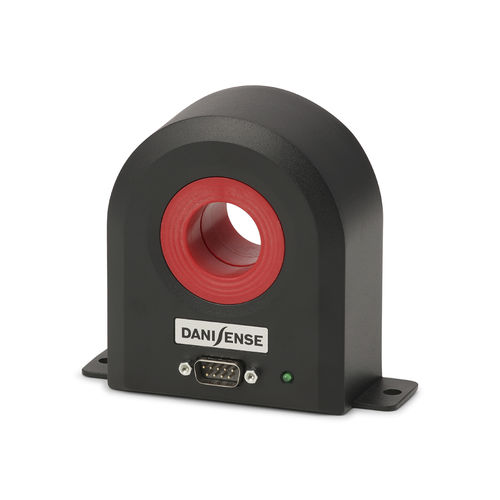

Fluxgate current transducer DS600ID-CD100

fixedACDC

Ultra-stable, high precision (ppm class) fluxgate technology DS Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1000A Features Linearity error maximum 1 ppm Fluxgate, closed loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for best in class accuracy and stability 100 turns calibration winding available in DSUB 9 connector - For up to ±50A test and calibration in circuit. Green diode for normal operation indication Full aluminum body for superior EMI shielding and extended operating temperature range Large aperture 27.6mm for cables and bus bars Ultra-stable, high precision (ppm class) fluxgate technology DS Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1000A Applications: MPS for particles accelerators Gradient amplifiers for MRI devices Stable power supplies Precision drives Batteries testing and evaluation systems Power measurement and power analysis Current calibration purposes
