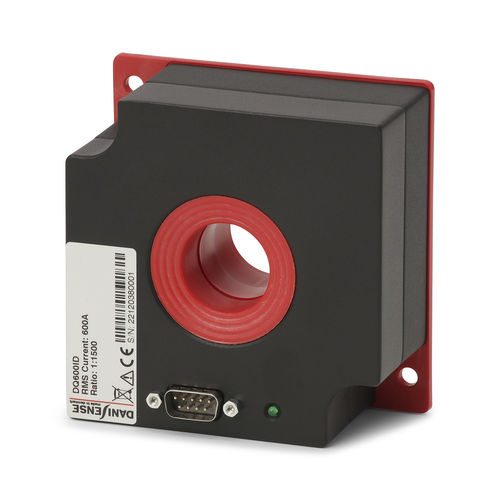

Fluxgate current transducer DQ600ID
fixedACDC

Fluxgate current transducer - DQ600ID - Danisense - fixed / AC / DC
Fluxgate current transducer - DQ600ID - Danisense - fixed / AC / DC
Add to favorites
Compare this product


Characteristics

Technology
fluxgate
Mounting
fixed
Electrical characteristics
AC, DC
Other characteristics
precision, through-hole
Primary current

Max.: 1,000 A

Min.: 0 A

Description

Features Linearity error maximum 1 ppm Fluxgate, closed loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for best in class accuracy and stability Industry standard DSUB 9 pin connection Green diode for normal operation indication Full aluminum body for superior EMI shielding and extended operating temperature range Large aperture 28.1mm for cables and bus bars Ultra-stable, high precision (ppm class) fluxgate technology DS Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1000A Applications: MPS for particles accelerators Gradient amplifiers for MRI devices Stable power supplies Precision drives Batteries testing and evaluation systems Power measurement and power analysis Current calibration purposes
