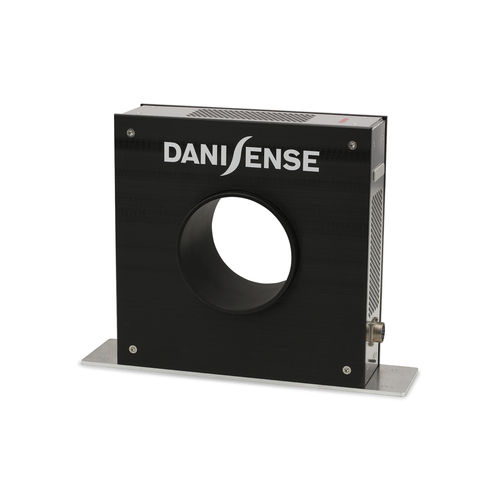

Fluxgate current transducer DR5000UX-10V/5000AfixedACDC
Add to favorites
Compare this product
Characteristics
- Technology
- fluxgate
- Mounting
- fixed
- Electrical characteristics
- AC, DC
- Primary current
5,000 A
Description
Ultra-stable, high précision (ppm class) fluxgate technology DR Sériés current
transducer for non-intrusive, isolated DC and AC current measurement up to 5500A
Features
Linearity error maximum +/- 7ppm
3 pin XLR mini connector for voltage output
Transducer core optimized for high level of immunity
against external magnetic fields
Operating temperature
Transducer head 0-60eC
Electronics 0-45°C
Aperture diameter 150 mm
21) 19" Control unit with universal (100-240V AC 50/60Hz)
AC input voltage or 120-370V DC input voltage
Danisense advanced sensor protection circuit ‘ASPC*
Applications:
MPS for particles accelerators
Stable power supplies
Précision drives
Batteries testing and évaluation systems
Power measurement and power analysis
Current calibration purposes
