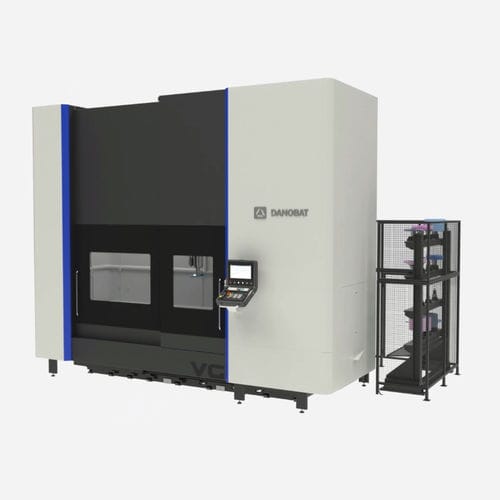

Gear grinding machine VG

for shaftfor workpiecesvertical

This hybrid machine is much more than a vertical grinder. Not only does it satisfy the tightest tolerances, it also combines grinding, hard turning, milling, boring, and drilling in a single set-up. Multipurpose: All operations in a single machine It performs multiple operations in a single set-up: grinding, hard turning, drilling, boring, milling and measurement. It is designed to minimise part set-up and thus, avoid errors that are critical when you grind such valuable parts. Wide grinding wheels to obtain the shortest possible cycle time This machine allows plunge grinding with wheel widths of up to 300 mm. For parts requiring accurate profiles, like raceways We know how demanding your part is. For more than 40 years, we have been challenged with sub-micron machining projects for high precision workpieces, such as bearings. This has enabled us to develop Danobat’s smooth guiding system for optimum axis interpolation, one of the many details making the VG special. What is the key for a probe to measure reliably? Certifying a measurement is not just the job of a gauge. Accuracy depends on the ability to integrate mechanics, machining cycles, measurement algorithms and ultimately, the probe. From the very first sketch, the VG is designed to integrate an automatic gauge. Clamping systems Face plates with grooves Magnetic chucks Hydraulic jaw chucks Dressing solutions Single diamond dresser Rotary dresser Multiple rotary dressers Radius dressers Tooling engineering Different customised tooling solutions.
