Floor-standing air conditioner AC-M18 CBRN

floor-standing air conditioner
floor-standing air conditioner
floor-standing air conditioner
floor-standing air conditioner
Add to favorites
Compare this product


Characteristics

Configuration
floor-standing
Cooling power

17.5 kW

Heating power

Min.: 16 kW

Max.: 20 kW

Height

780 mm
(31 in)

Width

1,140 mm
(45 in)

Air flow

2,500 m³/h
(88,286.67 ft³/h)

Noise level

54 dB

Description

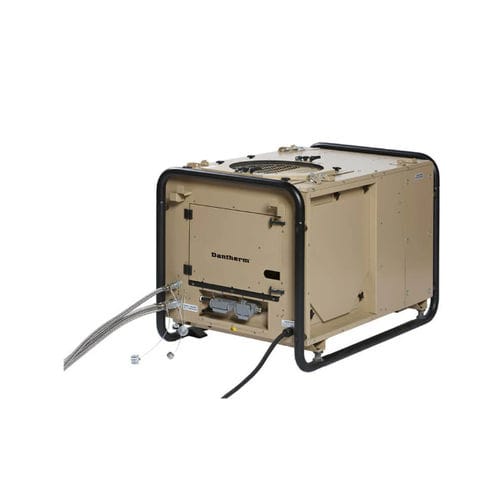

The AC-M18 CBRN air-conditioner is a portable unit developed primarily to provide air-conditioning in temporary or transportable buildings or tents. The AC-M18 CBRN is a compact, light-weight aluminium unit built into a rigid steel frame. The air-conditioner is designed to operate on COLPRO applications with the evaporator module placed inside the shelter and the condenser module placed outside. The two modules are interconnected by refrigerant hoses and power cables. The AC-M18 is designed for outside installation with ducted supply and return air. For field hospitals, where the need for filtration is higher than that of normal accommodation, a dual filtration system for the internal air path is available. The ACM 18 is also available as a split system for sealed applications (ACM 18 CBRN). View our range of air cooling units and tent coolers suitable for all types of application and commercial purpose on any scale. Key features The AC-M18 is built into a strong metal frame with insulated panels where relevant, powder coated Top finish painting is standard sand colour Scroll compressor for a high degree of reliability and low noise level Automatic phase surveillance Sequential start of units possible HP/LP pressostat switches ensuring long compressor lifetime Fresh air intake Four way fork lift handling Easy strap down on air cargo pallets and stackable (two units on top of each other) Suitable for Camps and field hospitals Events and festivals
