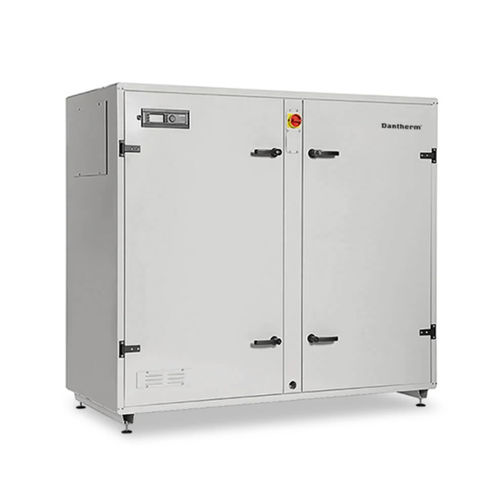

Floor-standing air handling unit DANX series

for residential applicationsoutdoorcompact

The DanX HP air handling unit combines the strengths of a heat pump system with a system that dehumidifies using outdoor air. The combined heat pump and highly effective double cross flow heat exchanger precisely regulate both humidity and temperatures in the pool room. Key features Built-in heat pump with rotary compressor and high COP. Optional built-in water cooled condenser for heating of the pool or domestic water Built-in user friendly control system for high-quality demand management. Automatic monitoring and control of pool hall temperature and humidity Double crossflow heat exchangers with a high efficiency of more than 85% and a low pressure drop Built-in by-pass for free cooling in the summertime Highly energy-efficient EC plug fans Efficient M5/ePM10 70% and F7/ePM1 55% compact filters with low pressure drop Self-bearing cabinet with hot-dip galvanised, powder-painted sandwich panels with 50mm mineral wool insulation, internal partition walls with 30mm and bottom frame with adjustable feet Designed to withstand the aggressive swimming pool environment (Corrosion class C4 according to EN/ISO 12944-2), with epoxy-coated crossflow heat exchangers, coils with aluminium frame, pre-painted fins and epoxy coating to protect all fasteners, bolts and nuts Two large inspection doors with strong hinges and tongue locks and handles for easy access for service All-in-one box solutions for easy and quick installation with all sensors and electrical components already connected BMS communication with either Modbus or BACnet DanX HP with double cross flow heat exchanger and heat pump
