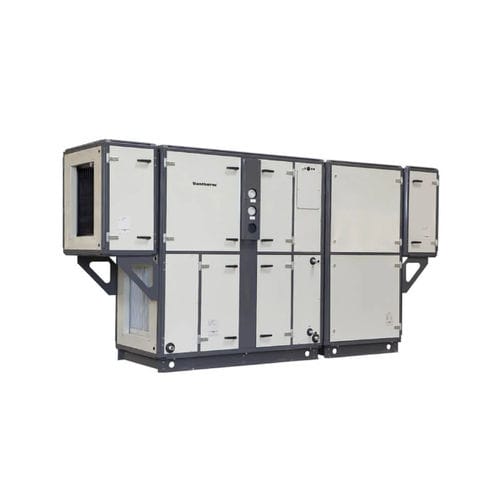

Refrigerant dehumidifier DanX XKS

airfor swimming poolbuilt-in

The DanX XKS is a very effective outdoor air dehumidification system with highly efficient cross flow heat exchanger. This system perfectly controls the humidity and indoor temperature while offering significant running cost reductions due to real energy savings of up to 80%. The integrated mixing function of this commercial air handling unit ensures that only the exact quantity of outdoor air needed is supplied – which keeps running costs at a minimum. Key features User-friendly control system for high-quality demand management. Automatic monitoring and control of temperature and humidity of the pool hall Crossflow heat exchanger with a high efficiency of more than 75% and a low pressure drop Built-in bypass for free cooling in the summertime Highly energy-efficient EC plug fans Efficient bag filters in different lengths and qualities with low pressure drops are available Load-bearing frame construction module with hot-dip galvanised, powder-painted sandwich panels with 50mm mineral wool insulation, internal partition walls with 30mm and bottom frame with adjustable feet Designed to withstand the aggressive swimming pool environment (Corrosion class C4 according to EN/ISO 12944-2), with epoxy-coated crossflow heat exchanger, heating coil with aluminium frame, pre-painted fins and epoxy coating to protect all fasteners, bolts, nuts IP66 damper motors designed for swimming pool use Large inspection doors with strong hinges and tongue locks and handles for easy access for service Modular unit for easy and quick installation with all sensors and electrical components already connected.
