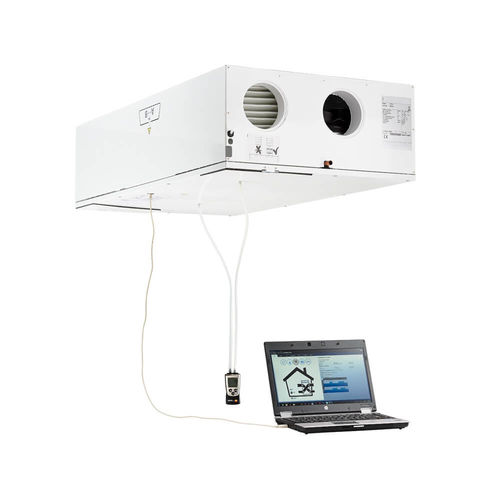

The HCC 360P2 is a unique and flexible residential ventilation solution. With only 30cm installation headroom it is ideal for installation in suspended ceilings or onto a wall, even hidden inside a closet. The unit can be electronically reversed, meaning that both air flows will be reversed. This allows the same unit type to be mounted with the inside/outside ducts connected to either the right or the left hand side of the unit. Electrical connections can be connected from either the left or the right.
Key features
High efficiency heat recovery – up to 85%
EC fan motors with low energy consumption (low SPI)
Only 300mm installation headroom height is required
Time controlled ventilation level, based on 11 different built-in pre-programmed week programs, reducing power consumption in periods with low ventilation demands
Summer cooling mode
Fireplace mode, creating a momentary inside overpressure, to enhance chimney functionality
Easy-to-install and commissioning solution with built in air measure ports, for easy balancing with PC-Tool
Electronically left/right fan direction switching, allowing same unit type to adapt any physical installation requirements, regardless of ceiling and wall selection
TCP/IP ModBus connection, for inter-operation with Building Management System
Electrical connections can be connected from either the left or the right.
