Turbine blower VP 6
multi-stagesingle-stagebox

turbine blower
turbine blower
turbine blower
turbine blower
turbine blower
turbine blower
turbine blower
Add to favorites
Compare this product


Characteristics

Technology
turbine
Number of stages
single-stage, multi-stage
Applications
box
Other characteristics
brushless
Flow

80 m³/h, 140 m³/h, 190 m³/h, 250 m³/h
(2,825.173 ft³/h, 4,944.053 ft³/h, 6,709.787 ft³/h, 8,828.667 ft³/h)

Operating pressure

220 mbar, 270 mbar
(3.191 psi, 3.916 psi)

Nominal power

1,280 W
(1.74 hp)

Sound level

57 dB

Weight

15 kg
(33.07 lb)

Length

455 mm
(17.91 in)

Depth

390 mm
(15.4 in)

Height

507 µm

Description

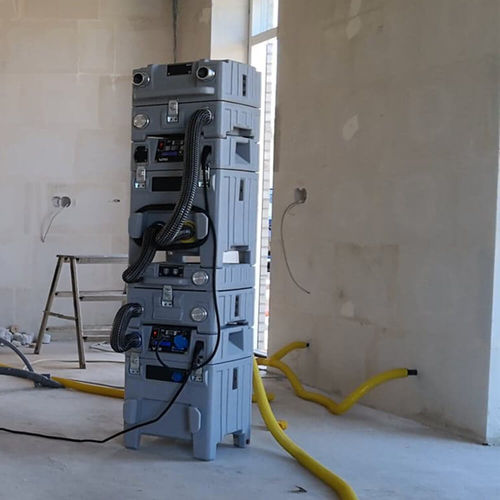

The noise box VP 6 is light, versatile and powerful. The use of a brushless, variable turbine reduces the weight of the VP 6 by up to 50% compared with conventional noise boxes with lateral channel blowers. The multi-stage control of this unit provides precise power adjustment. The VP 6 reduces the amount of equipment needed as it replaces up to four different individual units. Key features Easy to open, clean and maintain Intelligent eDRY® control Encapsulated control panel Ergonomically friendly manual handling features Can be combined with all products from the AERCUBE® series Fix points for AERCUBE® lashing system The system is designed to deliver optimum performance using 50mm hoses with alternative 38mm hose fittings optional Built-in safety thermostat to protect against restrictions and over-heating Integrated cable reel with magnetic plug holder Auxiliary plug connection for powering other devices such as dryers and fans Integrated F7 filter to protect turbine from dust ingress Extremely robust, shock-resistant and UV-resistant plastic housing 5 year warranty on rotomoulded housing Control/operation Easy-to-use electronics with full-text display Display device status and operation hours Bar graph and multi-colour LED to show the counter pressure On/Off-switch Appliance socket with fuse (max. 8A) Keylock Safety shut down in case of overload Advantages Aerial VP turbines are available with your logo and in your colour – minimum order quantity, 15 pieces Energy consumption is displayed via the calibrated, non-resettable, MID-compliant energy meter High performance brushless 4-stage turbine Integrated silencer to minimise noise

VIDEO
