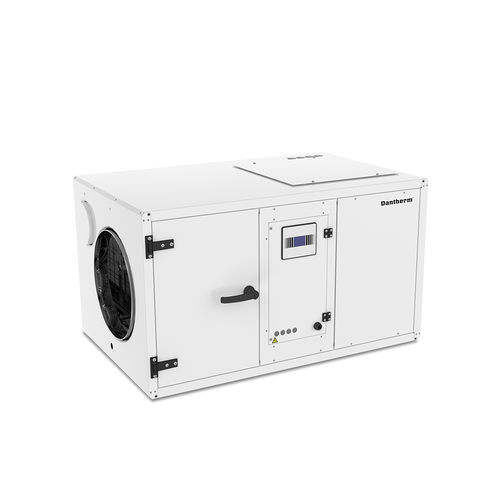

Refrigerant dehumidifier CDP 175

airfor swimming poolduct

The CDP 175 ducted condensation dehumidifiers are specifically designed for hotel, private, and therapy swimming pool hall dehumidification. They offer a great moisture removal per kWh, high durability, and efficient self-regulation. They are ideal for installation in an adjacent technical room. All metal parts and internal surfaces are powder coated before assembly and evaporator and condenser coils are made ofepoxycoated aluminium. The corrosion protection is in accordance with EN/ISO 12944-2, class C4. The range is equipped with the Dantherm CC6 controller which comes with an integrated 2.4” touch screen for easy user customisation of setpoints and visualisation of operational variables. Key features EC centrifugal constant flow fan User specified low and high air volume R454C refrigerant with GWP of 148 Movable inspection access Outdoor air inlet possibility (15%) through duct connection Supply air duct either horizontally or vertically connected Microchannel condenser Integrated control of exhaust fan and/or outdoor air damper Heat- and cooling demand regulation Datalogging and software update via supplied microSD card Compact unit designed to suit any plant room configuration Sandwich cover panels with 45mm insulation Optional water-cooled condenser Three setpoint specified control modes – relative, absolute, or dew point Modbus RTU (RS485)
