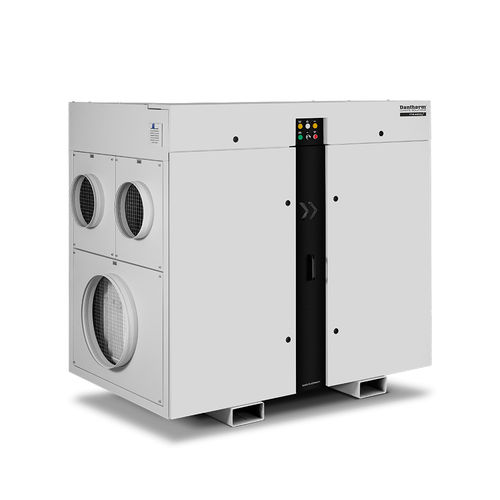

Desiccant dehumidifier TTR 6600

airgas

The TTR 6600 industrial desiccant dehumidifier has approximately 900kg of dehumidification performance per day and a nominal air volume of 6,600 cubic metres of dry air per hour at a static pressure of 400Pa, making it suitable for high dry air demand in cold surroundings with low dew points. It is ideal for permanent dry keeping, gas dehumidification, or dry air production in the chemical, pharmaceutical, and food industry, mechanical engineering, or protecting machines, inventory, and buildings from corrosion, condensation, or mould formation in water processing facilities or electrical control centres. Its robust, galvanised, and painted steel housing with corrosion protection can withstand harsh environmental conditions, making it an ideal solution for reducing the formation of ice and frost in deep-freeze zones or protecting stored goods susceptible to moisture. Key features Housing made of powder-coated, galvanized sheet steel Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air Filter monitoring with warning light Rotor rotation control Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air Flowmatic S, separate electronic fan speed control for process and regeneration air, controlled to a constant volumetric flow or pressure depending on the processrelated target value, control signal 0…10 V or 4–20 mA
