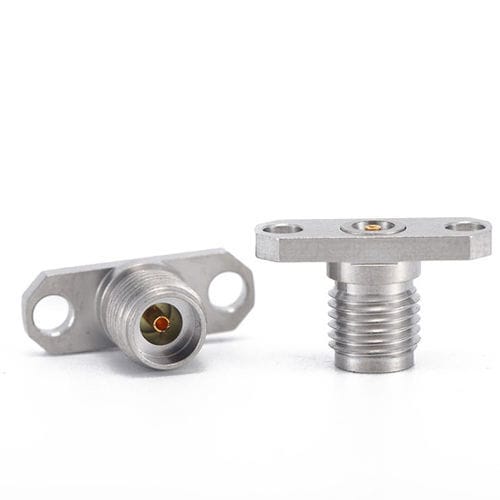

Data connector 2.92-KFD0.5Gradio-frequencySMAfemale
Add to favorites
Compare this product
Characteristics
- Type
- data, radio-frequency
- Format
- SMA
- Connection type
- female, flange
- Electrical characteristics
- insulation, frequency, frequency
- Material
- stainless steel
- Product applications
- solder, panel, cans, parts
- Domain
- measurement
- Other characteristics
- small, lightweight, microwave
- Impedance
50 Ohm
- Voltage
750 V
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -45 °C
(-49 °F)
Description
2.92mm Precision Microwave Connectors Panel Mount also named K connector, developed from series SMA connector.
2.92mm Precision Microwave Connectors Panel Mount has the advantages of small size, lightweight, high frequency, and super reliability, widely used in the modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.
2.92mm Female Flange with solder end
RoHS Certificate: Compliant
Frequency range - DC-40GHZ
Insulation Resistance - ≧3000MΩ
Contact Resistance
Center conductor - ≦4.0mΩ
.Outer conductor - ≦2.0mΩ
VSWR - ≦1.20
Durability (matings) - ≧500
Connector parts - Material
Body - Stainless steel (Su303),passivated
Pin contacts - Beryllium-Copper
Insulators - PEI
