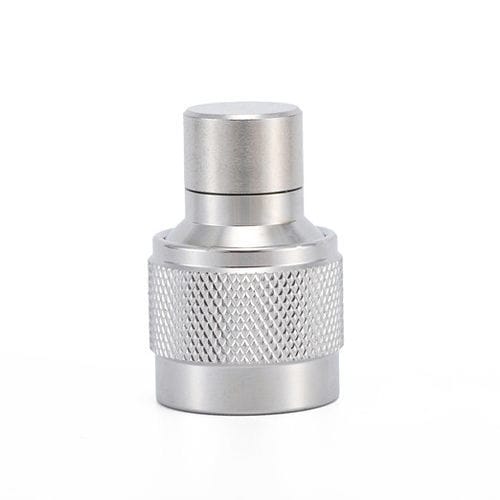

Male termination N-50JR-18Apinbrasssolid bronze
Add to favorites
Compare this product
Characteristics
- Connection type
- male, pin
- Material
- brass, solid bronze
- Other characteristics
- RF
Description
The N RF Termination can be designed based on customer's request ，with. The RF Termination can be matched to any transmission line.
N male 2 Watts RF Termination
RoHS Certificate: Compliant
Frequency range - DC-6GHZ
Insulation Resistance - ≧1000MΩ
Contact Resistance -
.Center conductor - ≦3mΩ
.Outer conductor - ≦2mΩ
Power - 2W
Durability (matings) - ≧500
Connector parts - Material - Plating
Body - Brass - Nickel-plated
Pin contacts - Bronze - gold-plated
Insulators - Teflon
