Name:

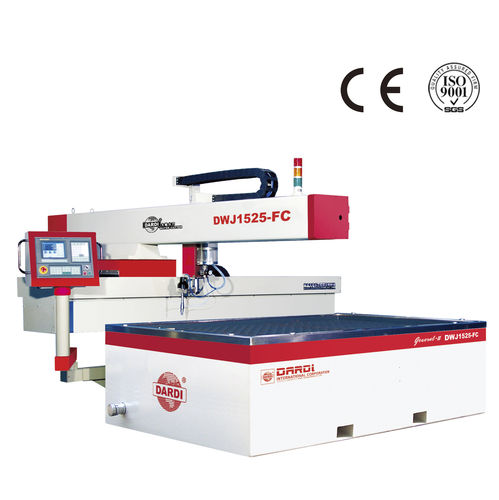

Flying-arm 1.5*2.5m Water Jet Cutter Motion System with CE,ISO,SGS certificated
Cutting area: 1.5m×2.5m×0.15m
Parts:
CNC system, Flying-arm cutting platform, high pressure generator, sand hopper, oil-cooling tower, portable pulse controller, attached accessories, complimentary accessories and special tools.
Applications:
CNC water jet cutting machine can flexibly process (cut off, engrave, make hole, drill) virtually all materials with consistent quality. It has found great application in glass, glass craftetc..
Parameters:
Form of machine: Gantry type/Cantilever type
Running speed: 0-10m/min
Control system: servo motor(YASKAWA Japan),ESA CNC control system
Control accuracy: ±0.02mm
Cutting accuracy: ±0.1mm
Bevel angle: ±5°
C axis rotating speed: 3600°/min
Max pressure: 400Mpa(60000psi)
Flow rate of UHP water: 3.8L/min
Power of oil pump: 30KW/37KW
Power supply: 220V/380V/415V 50Hz/60Hz
Processing scope1.5m× 2.5m
Form of machineCantilever
Runing speed0-10m/min
Control systemAC servo system
Control accuracy± 0.002mm
Cutting accuracy± 0.1mm
Max working pressure400Mpa(60000psi)
Max. flow rate of UHP water3.8L/in
Motor power of oil pump22kw/30kw
Power supply220V/380V415V 50HZ/60HZ
Our Advantages:
25 years of R&D experience
6.6 acre production base
SGS, CE, ISO certificates
OEM waterjet cutting service
Globe service office
Lower cost
