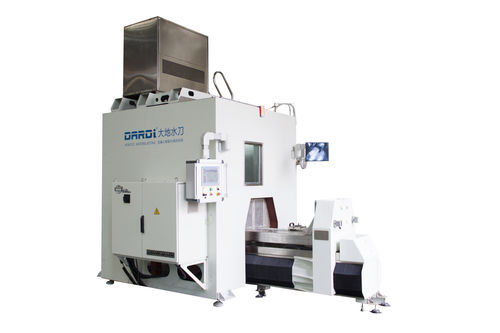

Grinding machine Huller

Huller System Mainframe size: 2200mmx1400mmx1800mm Actuator size: 5300mmx3150mmx4350mm Maximum pressure: 1400bar Maximum flow: 28L/min Maximum workpiece limit range: 430mm (height) X 260mm (width) Maximum cleaning speed: adjustable Total power: 90kw Typical application: The double-station machine tool and the cleaning workshop are integrated to greatly increase the safety of operator while shielding the ultra-high-pressure spray mist and noise as much as possible. The robot can be used to achieve multi-angle and multi-position spraying while reducing the labor intensity. The double-station machine tool is installed with cleaning molds with matching identification terminal that can automatically invoke the robot cleaning program of workpiece to realize the automatic production. The cleaning workshop adopts a double-casing design. The internal stainless steel material can effectively prevent the corrosion in the mist environment. The external carbon steel material can ensure the beautiful and elegant entire device. The sound insulation cotton packed in the middle can effectively absorb the jet noise. The ultra-high pressure system can realize remote start-stop and high-pressure pressure control, avoiding the frequent operation of ultra-high pressure mainframe. The configured control cut-off valve can realize the synchronous start-stop of rotary spray gun and high-pressure water injection.
