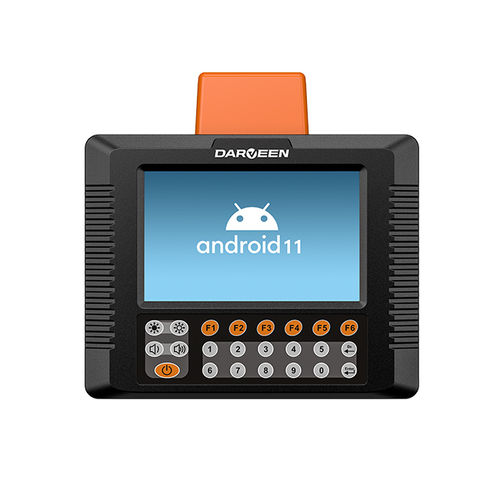

7" vehicle-mount computer VT-540A series

Rockchip RK3399 SoCArm® Cortex®-A53 Quad-coreArm® Cortex®-A72 Dual-core

● Front panel integrated with numeric and function key control ● Rugged aluminum enclosure and fanless design ● IP65 protection against water and dust ● Wide range 8 to 36VDC power input with ignition control The VT-540A is a compact and rugged 7-inch Android-based vehicle mount computer specifically designed for trucks, buses, forklifts, and various other applications. The VT-540A features a high-performance 6-core processor, an integrated 7-inch TFT LCD display with a projective capacitive touchscreen for enhanced usability. It also comes with built-in Wi-Fi 5, Bluetooth 4.2, 4G LTE/5G, and GNSS modules, enabling seamless real-time communication connections. The VT-540A boasts a fanless design, ensuring efficient cooling, and supports a wide temperature range and wide-range DC input. It is MIL-STD compliant and IP65 waterproof and dustproof, allowing it to withstand harsh operating conditions. Specifications Display Resolution - 800 x 480 Luminance - 400 nits Contrast Ratio - 500: 1 View Angles - 80 (left), 80 (right), 80 (up), 80 (down) Color - 16.2M Keypad & Keyboard Keypad - Power On/off Brightness and volume adjustment 0-9 numeric, enter and backspace F1-F6 user-defined function keys Audio Speaker - 8Ω/2W, mono speaker Power DC Input - 8 to 36VDC Power Consumption - 10W (Typ.) Power Mode - ATX (default), AT Mechanical Dimensions (W x D x H) - 240 x 190 x 59 mm (9.45 x 7.48 x 2.32 inches) Weight (N.W.) - 1.8 kg (3.96 lbs) Mounting Mode - VESA 75 and 100 Material - Die-casting aluminum with heavy duty metal Certification EMC - CE, FCC
