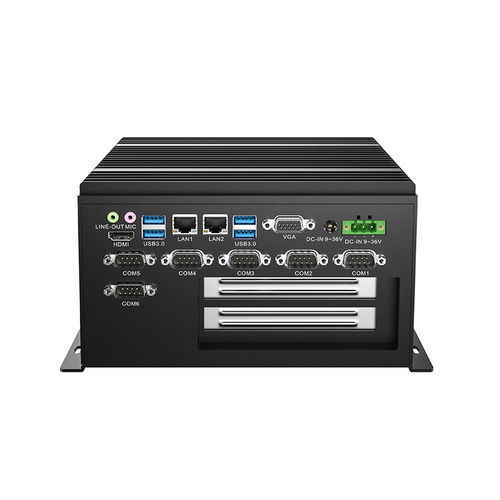

Box PC MBC-7111 series

embeddedwall-mounted7th Generation Intel® Core i7-8565U

The MBC-7111 fanless industrial computer features a cableless design, ensuring excellent resistance to vibrations and interferences. Its modular design, featuring a CPU board that plugs into an I/O board, not only reduces the time and cost required for product updates but also allows for easy customization to meet specific customer application needs. Moreover, the MBC-7111 provides a wide range of I/O interfaces, including isolated COM, USB, GbE LAN, GPIO, DIO, as well as Mini PCIe and PCI/PCIe expansion slots for WiFi or other advanced expansions. Specifications System CPU TDP - 15W Storage - 1x 2.5″ SATA HDD BIOS - AMI UEFI Watchdog Timer - Software programmable. Supports 256 levels system reset I/O Ports SIM Card Slot - 1x SIM card slot DIO - 4x DI, 4x DO PS/2 - 1 x PS/2 keyboard mouse Antenna - 2x SMA antenna holes Audio Audio - Mic in, line out Power Button - Yes Remote Power On/Off - 2-pin remote switch DC Input - 9-36VDC Power Mode - AT/ATX Mechanical Dimensions (W x D x H) - 223x 189x 117mm (8.78 x 7.44 x 4.61 inches) Weight (N.W.) - 2.5 kg (5.51 lbs) Material - Aluminum alloy Environment Operating Temperature - -10 to 60℃ (14 to 140°F) Storage Temperature - -20 to 60℃ (-4 to 140°F) Relative Humidity - 10% to 95% @ 40°C (104°F), non-condensing Certification EMC - CE, FCC Class A
