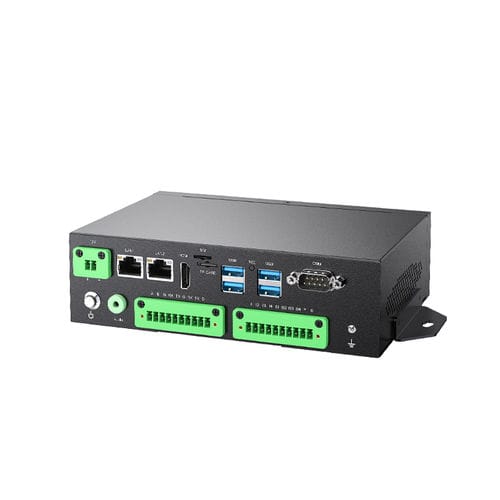

Desktop PC AEC-324embeddedDIN railRockchip RK3568
Add to favorites
Compare this product
Characteristics
- Configuration
- desktop, embedded, DIN rail
- Processor
- Rockchip RK3568, ARM® Cortex®-A55 Quad-core
- Ports
- RS-232, CAN bus, USB 2.0, USB 3.0, gigabit Ethernet, RS-485, WiFi, RJ45, 5G, LPDDR4, GPS, 4G, Bluetooth, RS-422, HDMI, VGA
- Operating system
- Linux® Ubuntu™, Android
- Domain
- for IoT applications, for heavy-duty applications, monitoring, for specific applications, MEMS, for automotive applications
- Other characteristics
- fanless
Description
AEC-324 is Darveen’s latest ARM-based embedded computer, a low-power quad-core processor based on quad-core Cortex A55 architecture, compatible with Android 11 or Ubuntu 18.04 operating system.The product integrates Wi-Fi, Bluetooth onboard, and can expand full Netcom 4G/5G communication, CAN port, GPS, providing all- in-one solution.
Specifications
System
CPU TDP - 12W
I/O Ports
SIM Card Slot - 1x SIM
TF Card Slot - 1x TF Card Slot
TF Card Slot - 2 x CAN (optional)
GPIO - 8 x GPIO (8x DIO optional)
Antenna Hole - 5x SMA-type
Audio
Audio - 1 x Front Audio Header (Line-Out + MIC)
Power
DC Input - 12VDC
Input Type - 1x 3-pin terminal block connector
Power Mode - AT/ATX
Mechanical
Dimensions (WxDxH) - 180 x 123 x 52 mm (7.09 x 4.88 x 2.05 inches)
Weight (N.W.) - 1KG (2.2lbs)
Material - Aluminum alloy
Environment
Relative Humidity - 10% to 95% (non-condensing)
