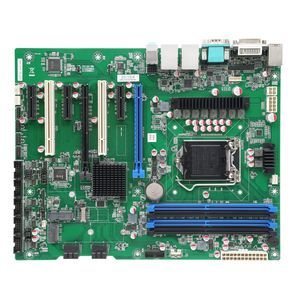

Industrial motherboard DMB-AH81ATXIntel® Celeron®Intel® Core i3
Add to favorites
Compare this product
Characteristics
- Format
- ATX
- Processor
- Intel® Celeron®, Intel® Pentium, Intel® Core i5, Intel® Core i3, Intel® Core i7, 4th generation Intel® Core™
- Chipset
- Intel® H81
- Memory
- DDR3 U-DIMM
- Extension slot
- SATA, PCI Express, SIM card, Mini PCIe
- Socket
- Intel 1150
- Applications
- embedded, industrial, network, server, workstation, POS, for automation, for medical equipment, for desktop computers, for autonomous mobile robot, for AGV
- Memory frequency
- DDR3 1333 MHz, DDR3 1600 MHz
- Connectivity
- USB 2.0, USB 3.0, RS-232, RS-485, VGA, DisplayPort, GbE, Ethernet, DVI-D
Description
Audio -
Realtek ALC897 5.1 Channel HDA Codec, Support MIC/Line-out Ports
Other Ports -
Fan: 1× CPU Fan + 2× System Fan
8× GPIO
1× Audio Connector + 1× Front Audio
1× LPT Header
1× SIM Connector
1× PS/2 Connector + 1× PS/2 Pin Header [6]
2× ATX Power Inout Connector
Temperature -
Storage: -20~75°C
Operating: 0~60°C
BIOS -
AMI UEFI BIOS
