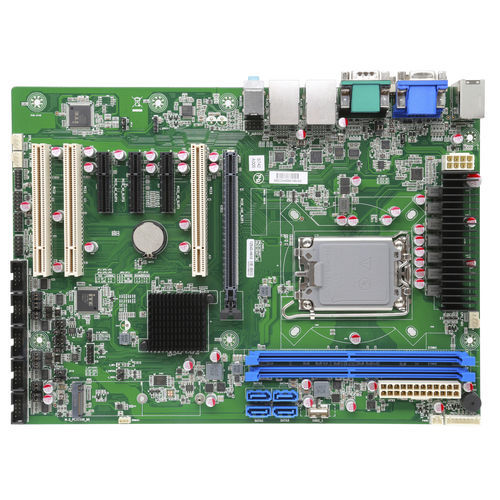

Industrial motherboard DMB-AH610ATXIntel® Celeron®Intel® Pentium
Add to favorites
Compare this product
Characteristics
- Format
- ATX
- Processor
- Intel® Celeron®, Intel® Pentium, 12th Generation Intel® Core™, 13th Generation Intel® Core™
- Chipset
- Intel® H610
- Memory
- DDR4 UDIMM
- Extension slot
- SATA, PCI Express, SIM card
- Socket
- LGA 1700
- Applications
- network, industrial, embedded, server, workstation, POS, for automation, for medical equipment, for desktop computers, for autonomous mobile robot, for AGV
- Operating system
- Windows 10 IoT Enterprise, Windows 11
- Memory frequency
- DDR4 3200 MHz
- Connectivity
- VGA, WiFi, gigabit Ethernet, USB, USB 2.0, USB 3.0, HDMI, RS-232, PS2, Ethernet, RS-485, RJ45, DisplayPort, DVI-D
Description
CPU -
Support MAX CPU TDP: 8+4 Core 65W
Audio -
Realtek Audio HDA Codec,
1× Front Audio Header (Line-Out + MIC)
1× SPDIF Out Header
1× Line-out + Line-in + MIC 3.5mm Jack
Other Ports
8× GPIO
1× PS/2 Connector (Keyboard & Mouse)
1× Front Panel Header (HDD LED+PWR LED+PWR ON+RESET)
1× ESPI Header (Debug Only)
1× SMBUS Header
2× System FAN Header
1× CPU FAN Header
1× Case Open Header
1× CMos Clear Jumper
1× AT or ATX Select Jumper
1× ME Flash Header
1× Power Monitor wafer
TPM -
SLB 9670VQ2.0,TPM2.0 (not onboard by default), Support Intel PTT Default
Temperature -
Storage: -20~75°C
Operating: 0~60°C
BIOS -
AMI UEFI BIOS (Support Watchdog Timer)
Power Supply -
ATX Standard (24P + 8P)
1× ATX 8P CPU Power Input Connector
1× ATX 24P Power Input Connector
