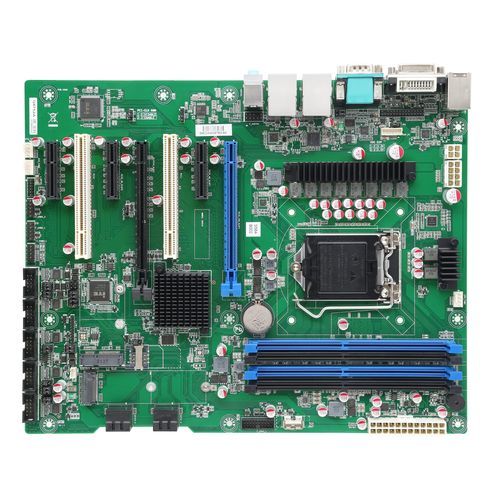

Industrial motherboard DMB-AQ670ATXIntel® Celeron®Intel® Core i3
Add to favorites
Compare this product
Characteristics
- Format
- ATX
- Processor
- Intel® Celeron®, Intel® Pentium, Intel® Core i5, Intel® Core i3, Intel® Core i7, 12th Generation Intel® Core™, Intel® Core™ i9, 13th Generation Intel® Core™
- Chipset
- Intel® Q670
- Memory
- DDR4 UDIMM
- Extension slot
- SATA3, M.2 Key M, PCI Express
- Socket
- LGA 1700
- Applications
- network, industrial, embedded, server, workstation, POS, for automation, for medical equipment, for desktop computers, for autonomous mobile robot, for AGV
- Operating system
- Windows 10 IoT Enterprise, Linux, Windows 11
- Memory frequency
- DDR4 3200 MHz
- Connectivity
- USB 2.0, WiFi, gigabit Ethernet, USB, PS2, eDP, USB 3.0, HDMI, RS-232, DVI-D, RS-485, DisplayPort, VGA, RJ45, RS-422, Ethernet
Description
Support MAX CPU TDP:8+8Core 125W
Storage - Supports RST RAID 0,1,5,10,
Audio - Realtek Audio HDA Codec,
1× Front Audio Header (Line-Out + MIC)
1× SPDIF Out Header
1× Line-out + Line-in + MIC 3.5mm Jack
Other Ports - 8× GPIO
1× Front Panel Header (HDD LED+PWR LED+PWR ON+RESET)
1× ESPI Header (Debug Only)
1× SMBUS Header
2× System FAN Header
1× CPU FAN Header
1× Case Open Header
1× CMoS Clear Jumper
1× AT or ATX Select Jumper
1× ME Flash Header
1× Power Monitor wafer
Temperature - Storage: -20~75°C
Operating: 0~60°C
BIOS - AMI UEFI BIOS(Support Watchdog Timer)
Power Supply - ATX Standard (24P+8P+4P)
1× ATX4P CPU Power Input Connector
1× ATX 8P CPU Power Input Connector
1× ATX 24PPower Input Connector
Factor - ATX Standard (305mm× 244mm)
TPM - SLB 9670VQ2.0,TPM2.0(Not onboard by default), Support Intel PTT Default
