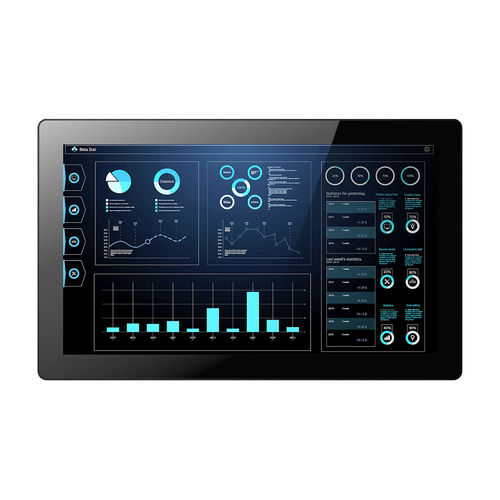

LCD panel PC DPC-9185
PCAP capacitive touch screen5-wire resistive touch screen18.5"

LCD panel PC - DPC-9185 - Darveen Co., Ltd. - PCAP capacitive touch screen / 5-wire resistive touch screen / 18.5"
LCD panel PC - DPC-9185 - Darveen Co., Ltd. - PCAP capacitive touch screen / 5-wire resistive touch screen / 18.5"
LCD panel PC - DPC-9185 - Darveen Co., Ltd. - PCAP capacitive touch screen / 5-wire resistive touch screen / 18.5" - image - 2
LCD panel PC - DPC-9185 - Darveen Co., Ltd. - PCAP capacitive touch screen / 5-wire resistive touch screen / 18.5" - image - 3
LCD panel PC - DPC-9185 - Darveen Co., Ltd. - PCAP capacitive touch screen / 5-wire resistive touch screen / 18.5" - image - 4
LCD panel PC - DPC-9185 - Darveen Co., Ltd. - PCAP capacitive touch screen / 5-wire resistive touch screen / 18.5" - image - 5
LCD panel PC - DPC-9185 - Darveen Co., Ltd. - PCAP capacitive touch screen / 5-wire resistive touch screen / 18.5" - image - 6
Add to favorites
Compare this product


Characteristics

Screen type
LCD, PCAP capacitive touch screen, 5-wire resistive touch screen
Display size
18.5"
Resolution
1920 x 1080
Processor
Intel® Celeron® J6412, "Intel® Core™ i5-10210U, Intel® Core™ i5-6200U, 10th Generation Intel® Core i7-10710U
Memory
DDR4 SO-DIMM, DDR4 3200 MHz
Operating system
Windows 10, Windows 7, Windows 11
Construction
fanless, compact, aluminum frame
Mounting
VESA mounting, wall-mounted
Applications
POS, industrial, for IoT applications, for data acquisition systems, data acquisition, for clean rooms, for self-service information kiosk, point-of-care, for check-in kiosk, for mobile applications, for office
Protection level
IP65, waterproof front panel
Integrated peripheral
with microphone
Other characteristics
HMI, all-in-one, WiFi, 2.4/5 GHz, Bluetooth, indoor, wide temperature range, with external power adapter, USB 2.0, RJ45
Memory size

Max.: 32 GB

Description

●18.5″ LED-backlit LCD with capacitive or resistive touch screen ●Rugged aluminum enclosure and fanless design ●Intel® Core™ U-Series / Celeron® processor ●2x COM, 4x USB, 2x LAN, 1x VGA, 1x HDMI ●Supports Wi-Fi, 4G ●VESA 100 mount and panel mount compatibility ●IP65 compliant front panel
