DC motor controller DC ST - 2MstepperdigitalDIN rail mounted
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Motor type
- stepper
- Other characteristics
- digital, DIN rail mounted
- Input voltage
Max.: 24 V
Min.: 12 V
Description

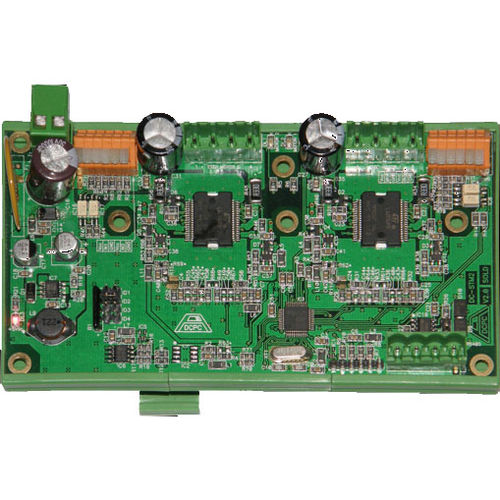

The DC-ST2M control module has been designed to operate with hybrid bipolar step motors through a
RS485 communication port.
FEATURES:
C of 2 motors ontrol per module.
RS485 communication port at 38400 or 115200 bauds.
Allows connecting up to 15 modules on the same bus m (30 otors).
Communication protocol with checksum.
Allows many working modes.
Direct supply from 12-24Vdc power supply.
4 opto-isolated digital inputs for limit switching mode or PNP input with power supplied by the module or
externally.
Plug-in connectors with screw.
DIN and OMEGA rail assembly.
APPLICATIONS:
Multi-head weighers.
Generic positioning systems.
