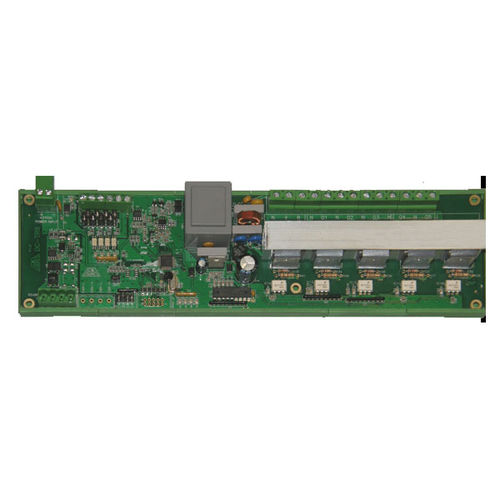

RS485 control module DC-TR9-B
Add to favorites
Compare this product
Characteristics
- Options
- RS485
Description
The DC-TR9 control module has been designed to operate single-phase 125 or 230Vac vibrators, via RS485 and CANBUS communication ports
FEATURES:
5 Channels per module.
RS485 communication port at 38400 or 115200 bauds.
Allows connecting up to 15 modules on the same bus (75 Vibradores).
Communication protocol with checksum.
Allows many working modes; standard, by photo-eye, etc.
125 or 230Vac power supply (for PWM outputs).
12-24Vdc power supply (for digital inputs).
Up to 750W per channel.
Configuration of: PWM %, gate time activation, number of semi-periods, etc.
4 opto-isolated NPN or PNP digital inputs with 12-24Vdc external power supply.
Plug-in connectors with screw.
DIN and OMEGA rail assembly.
APPLICATIONS:
Multi-head weighers.
Vibrating channel control.
PWM control of esistive and inductive devices
