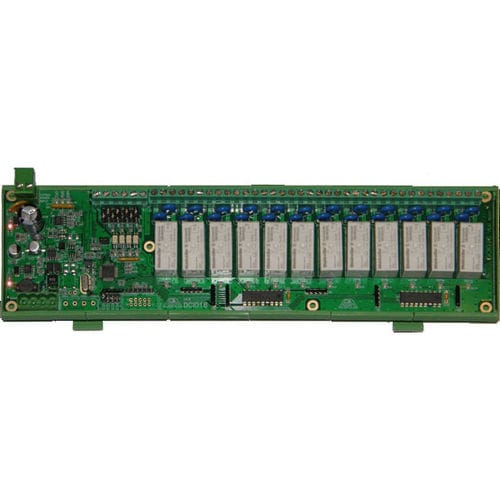

Digital I/O module DC-IO8RS-485remoteDIN rail
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Bus
- RS-485
- Type
- remote
- Mounting
- DIN rail
Description
The DC-IO## control module has been designed to operate the 125-230Vac or 12-24Vdc outputs and digital inputs through a RS485 communication port.
VERSIONS:
DC IO- 8 - 4 relays and 4 digital inputs per module.
DC IO- 12 - 8 relays and 4 digital inputs per module.
DC IO- 16 - 12 relays and 4 digital inputs per module.
FEATURES:
RS485 communication port at 38400 or 115200 bauds.
Allows connecting up to 15 modules on the same bus ay (180 rel s).
Communication protocol with checksum.
12-24Vdc power supply.
4 opto-isolated NPN or PNP digital inputs with 12-24Vdc external power supply.
Plug-in connectors with screw.
DIN and OMEGA rail assembly.
APPLICATIONS:
Multi-head weigher.
Dosing systems.
Control all type of digital inputs and outputs.
