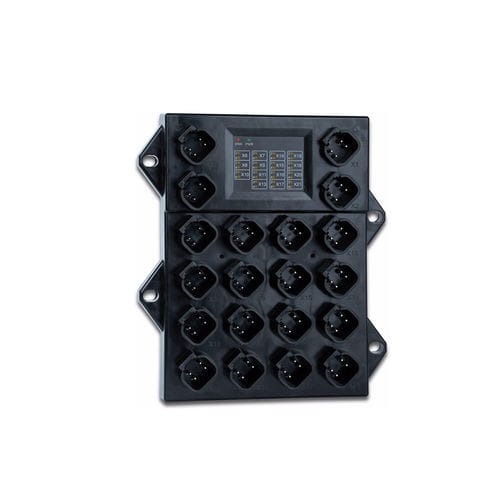

Configurable I/O module DP-81000-1-200
analogdigitalCANopen

Configurable I/O module - DP-81000-1-200 - Data Panel GmbH - analog / digital / CANopen
Configurable I/O module - DP-81000-1-200 - Data Panel GmbH - analog / digital / CANopen
Configurable I/O module - DP-81000-1-200 - Data Panel GmbH - analog / digital / CANopen - image - 2
Add to favorites
Compare this product


Characteristics

Signal type
digital, analog
Bus
CANopen, CAN
Number of inputs/outputs
8 digital inputs, 8 analog inputs, with PWM output, 14 digital outputs, 14-O
Other characteristics
configurable, IP67, IP65, IP69K, IP68

Description

The xtremeBLOCK CANopen module combines many different I/O signal configurations. It offers a total of 12 inputs, eight of which can be parameterized as analog. The remaining four digital inputs can also be configured as frequency inputs or counters. At the same time, the module offers 14 digital outputs, most of which can be configured as PWM or PWM(i). The maximum output current of 7 A is sufficient to control even actuators with high power. Mechanical Data Material (Housing) - PA, reinforced Dimensions H x W x D - 180,5 x 159,5 x 32 mm / 7,11 x 6,28 x 1,26 inch Weight - 800g / 1,76 lbs Power Connector - DT-4 IO connector - DT-4 Electrical Data Operating Voltage - 8 … 32 V DC Supply Protection - - LED Indicators - Signal: yellow Inputs Number of frequency inputs FRQ - 4 Frequency Range - max. 10 kHz Outputs Total number of outputs - 14 Number of digital outputs DO - 4 DO output current max. - 3 A Number of PWM outputs - 6 PWM output current max. - 7 A Number of PWMi outputs - 4 PWMi output current max. - 3 A Environmental Conditions Ambient temperature - -40 °C…+85 °C Storage temperature - -40 °C…+85 °C Suitable For: - CCpilot V1200, CCpilot V700, CCpilot V1000 Product Family: - xtremeBLOCK Inputs: - 12 Port Number: - 15 Connection: - DT-4, DT-18 Baudrate: - 125, 250, 500, 1000 kbit/s Input Signal Type: - DI/AI, DI/FRQ/CNT Output Signal Type: - DO / PWM [7 A], DO [3 A], PWMi [3 A] Auxiliary Voltage: - 8 … 32 V DC Housing Material: - Polyamide, reinforced Operating Temperature: - -40°C ... +85°C Mounting system: - 4x Langloch, Ø7,3 mm Standards / Approvals: - ECE R10 (E1, CE), ISO 14982
