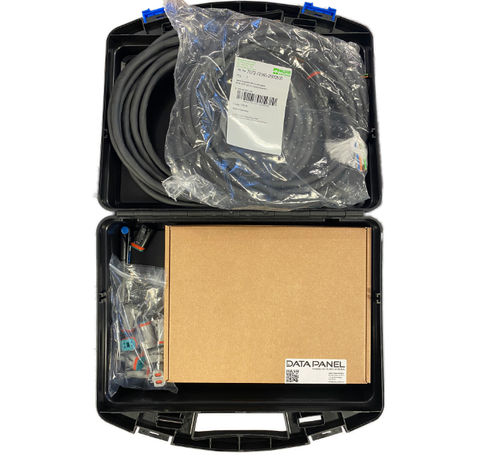

Starter kit DP-SK-81000-1-200

The xtremeBLOCK StarterKit includes our CANopen IO module with 12 inputs and 14 outputs as well as cordsets in 5 m length and accessories. With this StarterKit you can practically try out the I/O module on your desk with a CAN controller and mount it on your machine in a further step. Simply plug it together and put it into operation for series use. Standards / Approvals: - ISO 14982, ECE R10 (E1, CE) Output Signal Type: - DO / PWM [7 A], DO [3 A], PWMi [3 A] Operating Temperature: - -40°C ... +85°C IP Rating: - IP65, IP69K Suitable For: - CCpilot V1200, CCpilot V700, CCpilot V1000 Interfaces: - CAN Protocol: - CANopen, CAN Layer 2-B Input Signal Type: - DI/AI, DI/FRQ/CNT Baudrate: - 125, 250, 500, 1000 kbit/s Outputs: - 14 Inputs: - 12 Product Family: - xtremeBLOCK Housing Material: - plastic Auxiliary Voltage: - 12 / 24 V Mounting system: - 4x Langloch, Ø7,3 mm Connection: - DT-4, DT / AT / similar Port Number: - 15 LED: - yes
