Starter kit DP-SK01

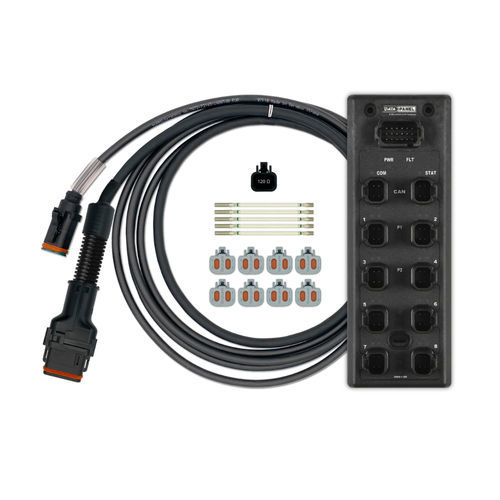

The xtremeDB StarterKit includes our CANopen I/O module with 8 inputs and 8 outputs as well as cordsets in 5 m length and accessories. With this StarterKit you can practically try out the I/O module on your desk with a CAN controller and mount it on your machine in a further step. Simply plug it together and put it into operation for series use. Input Signal Type: - DI/FRQ/CNT/ENC, DI, DI/AI Interfaces: - CAN Standards / Approvals: - ECE R10 (E8, CE), ISO 13309, EN ISO 13766-2, EN ISO 13766-1 Operating Temperature: - -40°C ... +80°C IP Rating: - IP67, IP68, IP69K Suitable For: - CCpilot V1200, xtremeDBmini, CCpilot V700, CCpilot V1000 Protocol: - CAN Layer 2-B Output Signal Type: - DO [4 A], PWM [4 A], PWMi [4 A] Inputs: - 8 Baudrate: - 250, 500 kbit/s Outputs: - 8 Product Family: - xtremeDB Housing Material: - plastic Auxiliary Voltage: - 12 / 24 V Mounting system: - 2x 6 mm round hole + 1x slotted hole Connection: - DT-4, DT-18, DT / AT / similar Port Number: - 8 LED: - yes
