Starter kit DP-SK02

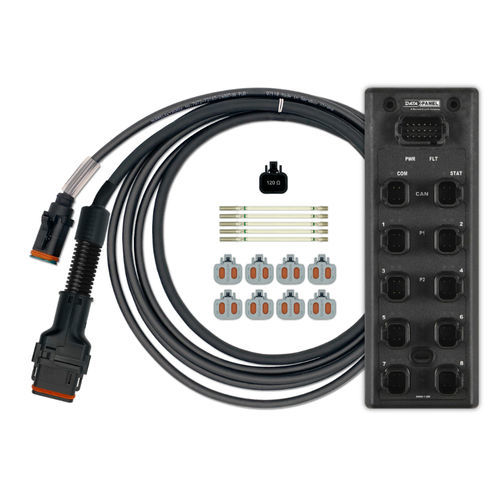

The xtremeDB StarterKit includes our J1939 I/O module with 8 inputs and 8 outputs as well as cordsets in 5 m length and accessories. With this StarterKit you can practically try out the I/O module on your desk with a CAN controller and mount it on your machine in a further step. Simply plug it together and put it into operation for series use. Input Signal Type: - DI/FRQ/CNT/ENC, DI, DI/AI Standards / Approvals: - ISO 13309, EN ISO 13766-1, EN ISO 13766-2, ECE R10 (E8, CE) Protocol: - SAE J1939, CAN Layer 2-B Suitable For: - CCpilot V1200, xtremeDBmini, CCpilot V700, CCpilot V1000 Output Signal Type: - DO [4 A], PWM [4 A], PWMi [4 A] IP Rating: - IP67, IP68, IP69K Operating Temperature: - -40°C ... +80°C Mounting system: - 2x 6 mm round hole + 1x slotted hole Baudrate: - 250, 500 kbit/s Product Family: - xtremeDB Housing Material: - plastic Port Number: - 8 Connection: - DT-4, DT-18, DT / AT / similar Inputs: - 8 Outputs: - 8 LED: - yes Auxiliary Voltage: - 12 / 24 V Interfaces: - CAN Signal Type: - Digital, Analogue, PWM / PWMi, Ratiometric, Counter / Frequency
