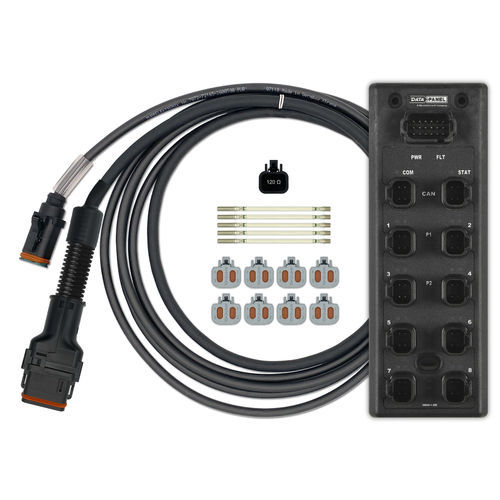

Starter kit DP-SK-1-100

The xtremeDB StarterKit includes our J1939 DPlogic I/O module with 8 inputs and 8 outputs as well as connection cables in 5 m length and accessories. Our DPLogic can be used stand-alone or together with a higher-level controller. The Logic can be programmed via graphical software. Input Signal Type: - DI/FRQ/CNT/ENC, DI, DI/AI Protocol: - SAE J1939, CAN Layer 2-B Standards / Approvals: - ECE R10 (E8, CE), ISO 13309, EN ISO 13766-2, EN ISO 13766-1 Operating Temperature: - -40°C ... +80°C IP Rating: - IP67, IP68, IP69K Suitable For: - CCpilot V1200, xtremeDBmini, CCpilot V700, CCpilot V1000 Interfaces: - CAN Inputs: - 8 Output Signal Type: - DO [4 A], PWM [4 A], PWMi [4 A] Baudrate: - 250, 500 kbit/s Outputs: - 8 Product Family: - xtremeDB Housing Material: - plastic Auxiliary Voltage: - 12 / 24 V Mounting system: - 2x 6 mm round hole + 1x slotted hole Connection: - DT-4, DT-18, DT / AT / similar Port Number: - 8 LED: - yes
