Starter kit DP-SKM-05-000

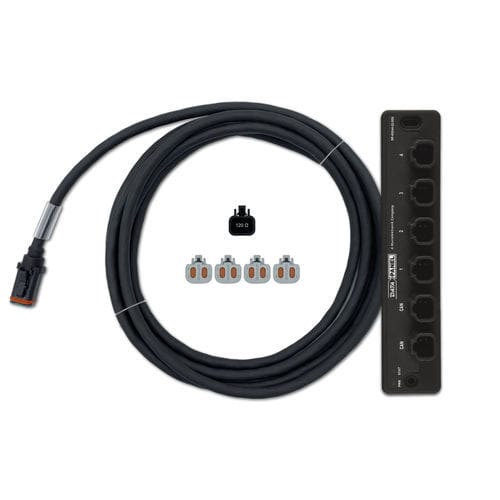

The xtremeDBmini StarterKit includes our SAE J1939 output module with 8 outputs as well as cordsets in 5 m length and accessories. With this StarterKit you can practically try out the input module on your desk with a CAN controller and mount it on your machine in a further step. Simply plug it together and put it into operation for series use. Suitable For: - xtremeDB, CCpilot V1200, CCpilot V700, CCpilot V1000 Standards / Approvals: - ISO 13309, EN ISO 13766-2, EN ISO 13766-1 Interfaces: - CAN Baudrate: - 250, 500 kbit/s IP Rating: - IP67, IP68, IP69K Outputs: - 8 Operating Temperature: - -40°C ... +85°C Output Signal Type: - DO [5 A] Product Family: - xtremeDBmini Housing Material: - plastic Auxiliary Voltage: - 12 / 24 V Mounting system: - 1x 6 mm Rundloch + 1x Langloch Connection: - DT-4, DT / AT / similar Port Number: - 8 LED: - yes
