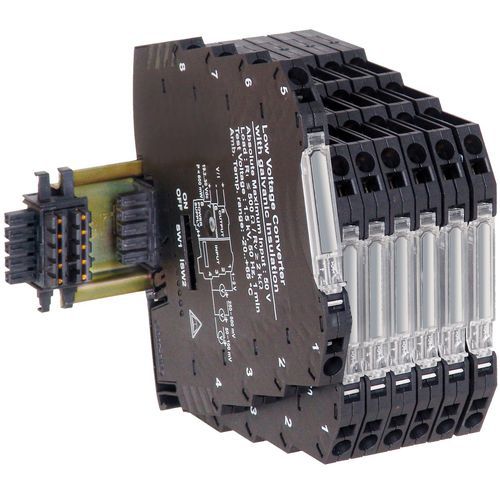

Voltage/current converter DSCP63

DIN railindustrialcompact

Each DSCP63 Voltage/Current Converter provides a single channel of voltage or current input which is converted to a voltage or current output. It is designed for industrial standard voltage or current signals. Input/output range, filter, fault indication, square root function and other functions may be configured by dip-switch. Thermocouple Input : Type J, K, E, N, S, R, B, T (ITS-90 Standard) Current Output: 4 to 20mA, 20 to 4mA, 0 to 20mA, 20 to 0mA Voltage Output : 0 to 10V, 10 to 0V, 0 to 5V, 1 to 5V Static Relay Auxiliary Output : Nominal Voltage 24V AC/DC, Current 60mA, Overvoltage Protection 50V, Settable Alarm Trip/Hysteresis Isolation : 1.5kV (50 or 60Hz, 1 min) Power Supply : 19.2 to 30V DC Better than ±0.1% Accuracy 14-Bit Resolution Output Overcurrent Protection 500mW Maximum Power Consumption Dip-Switch Configuration Cage Clamp Connectors Hot Swappable Expandable Power-Bus Connector on DIN Rail Guide Compact 93.1 x 6.2 x 102.5mm PBT Black Case Wide Operating Temperature Range : -20°C to 65°C CE Compliant RoHS Directive 2002/95/EC
