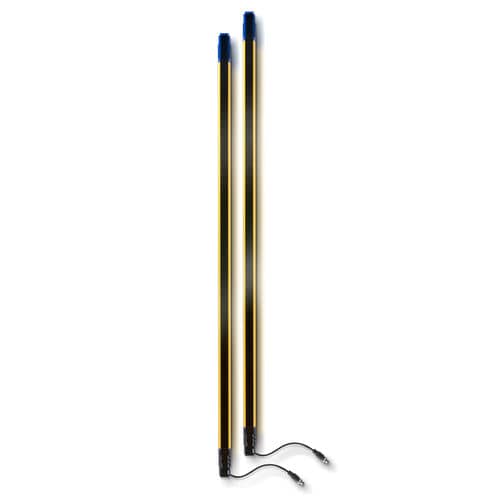

Safety light curtain SG4 EXTENDED multibeamthrough-beammuting
Add to favorites
Compare this product
Characteristics
- Function
- safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Other characteristics
- muting
- Operating range
7 m, 20 m
(22'11" , 65'07" )
Description
Programmable Safety Light Curtain Type 4 (Pl=e, SIL3)
Resolution: Finger 14 mm; Hand 30 mm
Controlled heights from 300 to 1800 mm (n x 150 mm)
Operating distance: Finger 7m; Hand 20 m
Compact; No dead zone; up to 3 cascadable units
Fully programmable: Auto/Man restart, EDM, coding, Muting (T/L, total/partial, with/without timeout, etc.)
Fixed/floating blanking; reduced resolution function
Ethernet Port, SG Dongle and Graphic User Interface
