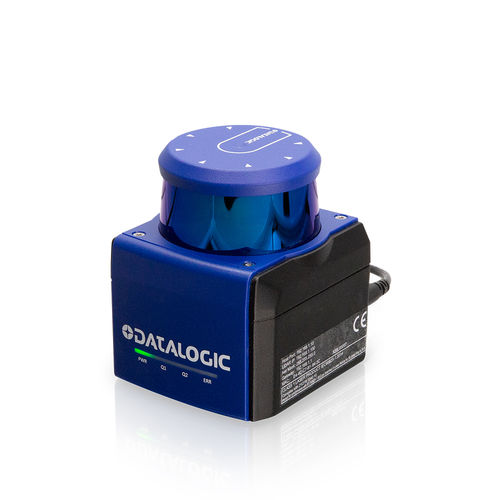

2D scanner LGS-N50 measurementwebLIDAR
Add to favorites
Compare this product
Characteristics
- Number of axes
- 2D
- Applications
- measurement, web
- Technology
- LIDAR, infrared
- Measuring distance
50 m
(164'00" )
Description
ToF technology on infrared laser
2D Measurement data for natural or marker navigation
360° measurement for all-round scanning
Differentiation between natural objects and reflectors
Scanning rate 10/15/20/25 Hz
Measurement rate 60000 points/s
Measurement range: 0.2 - 2 m with 1.8% reflectivity / 0.2 - 15 m with 10% reflectivity / 0.2 - 50 m with 80% reflectivity
Dimensions (w,d,h): 95 x 97 x 116 mm
Communication interface: IEEE 802.3u 100 Mbps Ethernet
Configuration software: Any web browser (configuration through web server)
