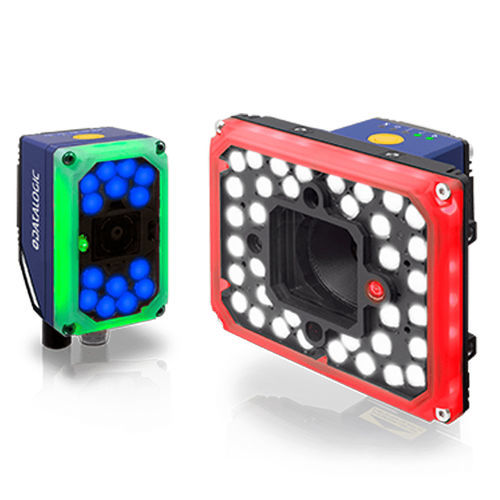

Smart camera P3X series

machine visionindustrialQHD

The new P3x Series is a complete line of color and monochrome smart cameras with Micro Video and C-mount lens options. The P3x Series enhances the Datasensing Machine Vision portfolio with the introduction of 5MP resolution models and performances that are twice as fast as the current P2x series. All accessories used with the P2x models are interchangeable and fully compatible with the P3x series. Product Highlights: • qHD (960 x 540) 2MP (1920 x 1080) and 5MP(2560 x 1936) resolution imager options both available in monochrome and color • Field interchangeable lenses, illuminators and filters • Two embedded illuminator sizes: 14-LED compact and 36-LED high power both integrating TIR lenses to deliver maximum brightness onto the field of view available in 4 different colors (white, blue, red and IR) • Lens options: Micro-video (6, 8, 12.5 and 17.5 mm) or C-Mount • Innovative 360° software configurable visual feedback • Top industrial grade: -10 to 50 °C / 14 to 122 °F operating temperature, IP65/67 rating • Powered by IMPACT software suite with 100+ inspection tools • Add-on licenses to run even the most advanced Datasensing algorithms
