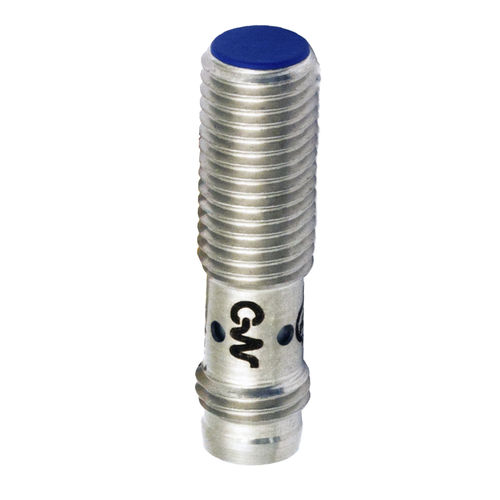

Inductive proximity sensor AES seriescylindricalM8PNP
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M8
- Output signal
- PNP
- Supply voltage
- DC
- Mounting
- threaded, flush
- Material
- stainless steel
- Protection level
- shielded, IP67
- Other characteristics
- with LED light, miniature
- Length
20.3 mm, 29.4 mm
(0.8 in, 1.16 in)- Measuring range
1.5 mm, 2 mm
(0.06 in, 0.08 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Miniaturized inductive sensors diameter M8. Where small spaces required small dimensions.
• Miniaturized dimensions: M8 x 20 mm (cable) / 30 mm (plug) lenght
• Output current: 100 mA
• ASIC inside: high reliability and repeatibility
• Totally protected against electrical damages
• Cable and plug M8 output
• Stainless steel AISI303 housing
Catalogs
AES series
4 Pages
