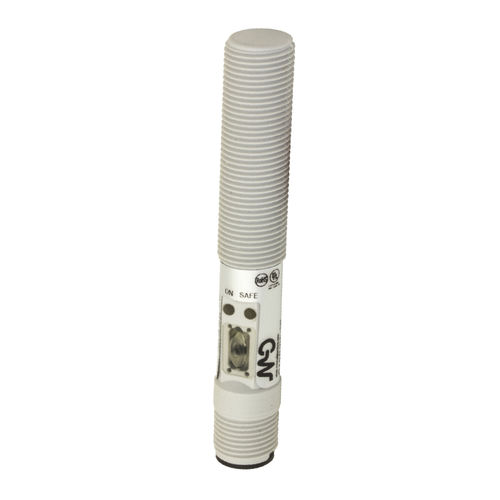

Capacitive proximity sensor C12 series

cylindricalM12PNP

Very compact solution detecting any kind of material • Plastic housing • High immunity to EM noises TECHNICAL FEATURES • Thermal drift of Sr : < 20% • Repeat Accuracy : 5% • Sensitivity adjustment : Yes • Hysteresis : ≤ 20% • Output type : NPN/PNP • Output Function : NO/NC • Switching frequency : ≤15Hz • Operating Voltage : 10...40Vdc • No-Load supply current : ≤ 12mA • Load current : ≤ 200mA • Leakage current : ≤ 300μA • Output voltage drop : ≤ 2,5V @ IL = 200mA • Max ripple content : ≤10% • LED indicators : Yellow LED (object detected), green LED power supply/stability • Time delay before availability : ≤ 200ms • Short-circuit protection : polarity reversal, overvoltage • Reverse Polarity Protection : Yes • Impulsive Overvoltage Protection : Yes • Active Head Material : Polyester • Operating temperature : -35°C…+85°C (without freeze) • Storage temperature : -40°C…+85°C • Diameter/Dimension : M12 • Approvals : CE cULus • EMC compatibility : IEC 60947-5-2 • Shocks and vibrations : Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 • Degree of protection : IP67 • Supplied Accessories : 2 x M12 nuts
