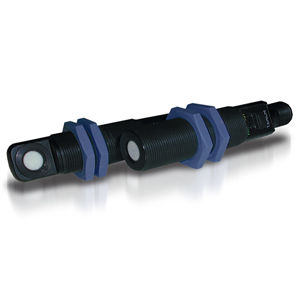

Ultrasonic sensor US18 series

US18-PA/PR series guarantees a small blind zone providing a wide operating range, are available in two different barrel housings with discrete or analog output. • Digital bipolar PNP/ NPN NO /NC configurable output model • Digital and 0-10 V / 4-20 mA configurable analogue output model • Operating range of 200 mm…8m • Minimum resolution: 1 mm • Analogue output Linearity: +/- 0.2% of span from 200 to 8000 mm; +/- 0.1% of span from 500 to 8000 mm (1 mm minimum) • Minimum window size: 20mm • Repeatability: 1 mm • Hysteresis: 5 mm • Response Time: 100 ms to 1600 ms • DIP SWITCH selectable • Access to bank of 8 DIP switches through sealed cover for superior user functionality • Fast, easy-to-use REMOTE TEACH - Mode programming; no potentiometer adjustments • Wide operating range of -20° to +70°C with compensation function • Rugged encapsulated design for harsh • environments • Unique housing design allows for • multiple mounting configurations • Euro-style quick-disconnect fitting
