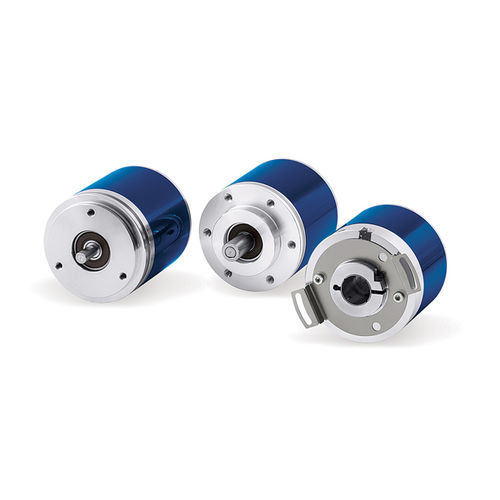

Absolute rotary encoder AMT58-S06-13x12-M1212-bitmulti-turnRS-422
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Absolute encoder resolution
- 12-bit
- Construction
- multi-turn
- Output signal
- RS-422
- Electrical connection
- M12 connector
- Supply voltage
- DC
- Material
- aluminum
- Protection level
- IP65
- Applications
- industrial
- Other characteristics
- high-resolution, high-accuracy
- Housing diameter
58 mm
(2.28 in)- Shaft diameter
6 mm
(0.24 in)- Length
52 mm
(2.047 in)- Rotational speed
9,000 rpm, 12,000 rpm
(56,549 rad.min-1, 75,398 rad.min-1)- Output frequency
220 kHz
- Process temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description
• Standard dimension Ø58mm
• Hollow or solid shaft
• Very high resolution
• Very high accuracy
• Nominal sensing distance : 8192 cpr x 4096 turns
• Description : Shaft Ø6mm
• Functions : Absolute multiturn
• Output type : Gray SSI RS422
• Operating Voltage : 7.5-34 VDC
• Connections : M12
• Material : Metal - Aluminium
