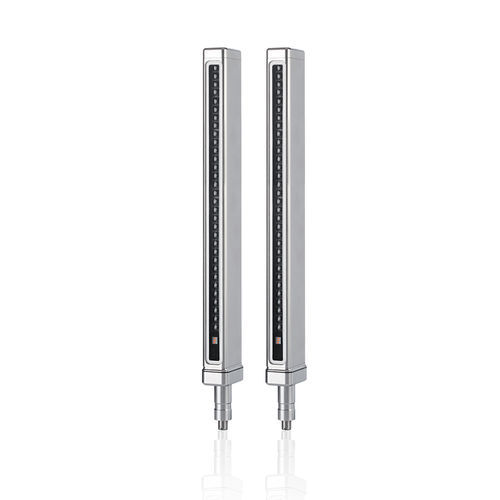

Safety light curtain SG4-H series

multibeamthrough-beamIP69K

The first safety light curtain with stainless steel housing and glass dedicated to Pharma Industry, where strong hygienic requirements need frequent cleanings with highly corrosive detergents. • Safety Type 4 (Pl=e, SIL3) • Resolution: 14 mm • Protected height: 150/300/450 mm • Operating distance: 0.2 …6 m • Outputs: 2 PNP; Output current: 0.5 A max/each output • Mechanical protection: IP69K • Restart: Automatic STAINLESS STEEL TYPE 4 SAFETY LIGHT CURTAIN FOR PHARMA INDUSTRY • Stainless steel housing • Hygienic design • No need for additional protection tubes • IP69K full protection • Housing: AISI316L stainless steel with roughness under 0.8 micron • Window: Optical glass • Rounded surfaces with no gaps or sharp edges • No labels: All information laser marked • Maximum safety: Type 4, finger resolution • Three protection heights: 150, 300 and 450 mm • 50 x 30 mm profile • 4 LEDs and 7-segment display alignment aiding
