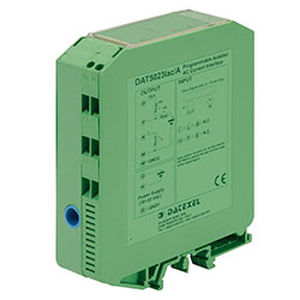

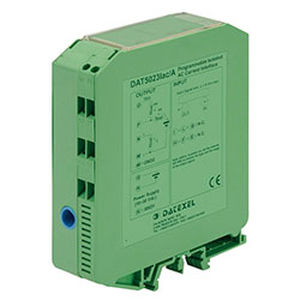

Voltage/current converter DAT5023-V

1 analog input1 analog outputDIN rail

The converter DAT 5023/V is designed to detect the TRMS value of the AC voltage signal or to convert the DC voltage signal applied on its input in a voltage or current output signal. The user can program the input type and output ranges by the proper DIP-switches available after opening the suitable door located on the side of device (see “Input type table” and “Output ranges table” sections). The regulation of Zero and Span values is made by the ZERO and SPAN potentiometers located on the top of device. The 1500 Vac isolation between input, power supply and output eliminates the effects of all ground loops eventually existing and allows the use of the converter in heavy environmental conditions found in industrial applications. The DAT 5023/V provides on the output side an auxiliary supply source to connect both active and passive loads. It is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in according to EN-50022 and EN-50035 standards .
