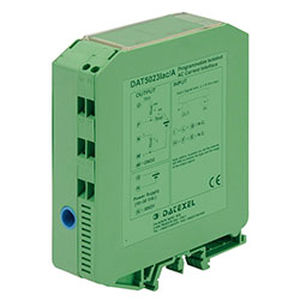

Signal converter DAT5023Iac-Banalog1 analog input1 analog output
Add to favorites
Compare this product
Characteristics
- Type
- signal, analog
- Bus
- 1 analog input, 1 analog output
- Other characteristics
- DIN rail, industrial, isolated
Description
The converter DAT 5023Iac is designed to detect the TRMS value of the AC current signal from 0÷5 A to 0÷60 A applied on its input providing a voltage or current output signal. The user can program the input and output ranges by the proper DIP-switches available after opening the suitable door located on the side of device. The regulation of Zero and Span values is made by the ZERO and SPAN potentiometers located on the top of device. The 2000 Vac isolation between power supply and output eliminates the effects of all ground loops eventually existing and allows the use of the converter in heavy environmental conditions found in industrial applications. The measure of the input signal is executed by a cross connector and a Hall effect transducer; this allows to isolate the input side from the output and power supply.
