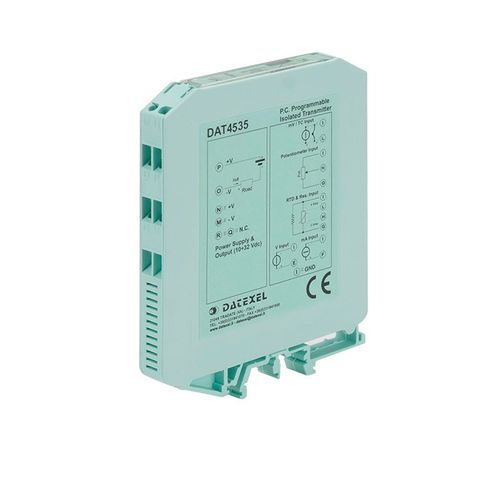

DIN rail mount temperature transmitter DAT4535

RTDthermocoupleresistance

The universal isolated transmitter DAT4535 is able to measure and linearise voltage, current and resistance signals, potentiometers and the standard thermocouples and RTDs with, if required, the cold junction compensation and the wires compensation. In function of programming, the measured values are converted and transmitted on the 4÷20 mA current loop. The device guarantees high accuracy and performances stability both versus time and temperature. The programming is made by the dip-switch located in the window on the side of the enclosure. By means of dip-switches it is possible to select the input type and range without recalibrate the device. Moreover, by Personal Computer the user can program all of the device's parameters for his own necessity. The terminals of the current signal on input side must be only connected to active current loop. The 1500 Vac galvanic isolation eliminates the effects of all ground loops eventually existing and allows the use of the transmitter in heavy environmental conditions found in industrial applications. It is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.
