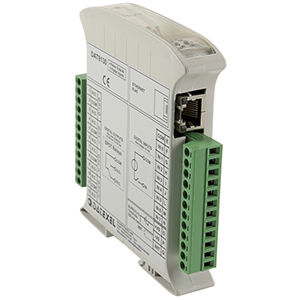

Web server DAT8188

DIN railEthernet

The device DAT8188 is a Modbus TCP server unit with 8 digital input channels and 8 PNP outputs. For the digital inputs are available up to 4 counters at 32 bit with measure of frequency up to 300 Hz. The Ethernet interface allows to read and write in real time the value of device's internal registers. The built-in Web Server of DAT8188 allows the remote visualization and acquisition of the digital inputs state, to drive the digital outputs and access to and configure the main Ethernet parameters via web browser. The device is also configurable by the software Dev9K, a free IDE developed by DATEXEL. The device DAT8188 realizes a full electrical isolation between the lines, introducing a valid protection against the effects of all ground loops eventually existing in industrial applications.The LEDs of signalling of Ethernet activity, input and output state and power supply allow a direct monitoring of the system functionality. The connection is made by removable screw-terminals (inputs, outputs and power supply) and RJ45 plug (Ethernet).
