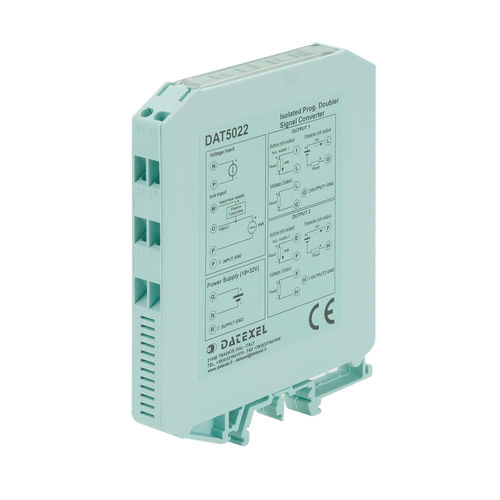

Signal converter DAT5022

voltage/current1 analog input2 analog outputs

The DAT 5022 converter provides on its output 2 voltage or current signals proportional to value of the normalized signal applied on its input. The user can program input and outputs ranges by associated DIP-switches. The regulation of zero and span values is made by the ZERO and SPAN potentiometers located on top of the device. The 2000 Vac isolation between input, power supply and the outputs eliminates the effect of possible ground loops allowing use of converter in difficult environmental conditions. The DAT 5022 provides an auxiliary supply source on the input side to connect both the active and passive current loops.
