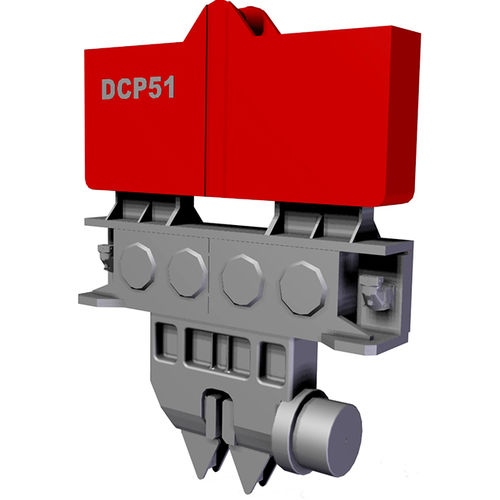

Vibratory pile driver DCP series

SPECIFICATION UNITS ECCENTRIC MOMENT kg.m 32 51 76 FREQUENCY RANGE Hz 13-28 15-30 13-27 DRIVING FORCE kN 1050 1844 2330 AMPLITUDE (FREE HANGING) mm 30 28 31 STD LINE PULL FOR EXTRACTING kN 490 483 620 MASS (NO CLAMP OR HOSES) kg 3121 5647 6918 DYNAMIC MASS kg 2150 3579 4850 HEIGHT (WITHOUT CLAMP) mm 1915 2134 2550 LENGTH mm 2000 2470 2490 WIDTH mm 527 560 560 THROAT WIDTH mm 362 362 362
