- Hydraulic pile-driving hammer
- DAWSON CONSTRUCTION PLANT LIMITED

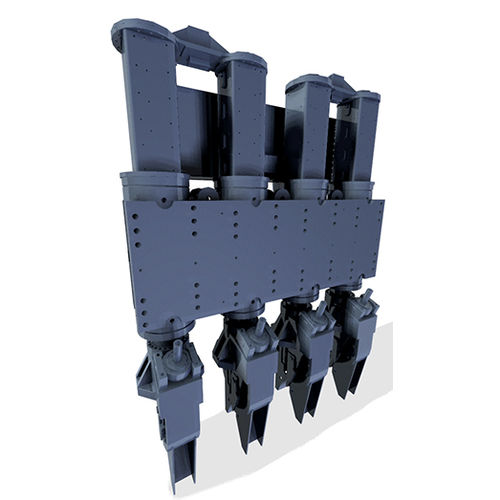

4-cylinder pile-driving hammer hydraulic
Add to favorites
Compare this product
Characteristics
- Specifications
- 4-cylinder, hydraulic
Description
SILENT PILING
4 CYLINDER PUSH PULL SYSTEM
SPECIFICATION UNITS
4 CYLINDER
U & Z PILES
4 CYLINDER
BOX PILES
PRESSING FORCE PER CYLINDER kN 2,078 2,078
ton (US) 233 233
EXTRACTION FORCE PER CYLINDER
kN 2,078 2,078
ton (US) 233 233
MAXIMUM CYLINDER ADVANCE DISTANCE
mm 600 600
in 23.6 23.6
CYLINDER ADVANCE RATE
mm / min 5,890 5,890
in / mm 232 232
WEIGHT kg 13,000 13,000
lbs 28,650 28,650
Catalogs
No catalogs are available for this product.
See all of DAWSON CONSTRUCTION PLANT LIMITED‘s catalogsOther DAWSON CONSTRUCTION PLANT LIMITED products
Silent / vibration free piling pressing system
