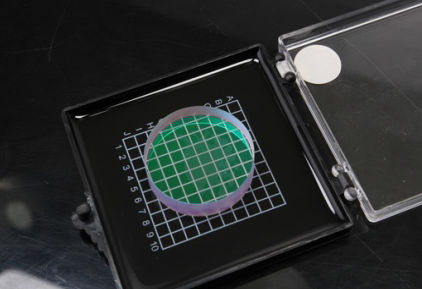

Optical polarizer high-transmittancethin-layer
Add to favorites
Compare this product
Characteristics
- Options
- optical, high-transmittance, thin-layer
- Wavelength
400 nm, 800 nm, 1,100 nm
Description
Thin film Polarizer----45°
Dayoptics has newly developed thin film polarizer based on 45deg. Incidence. We can assure high transmittion >95% and high reflection >99%. Ask Dayoptics’ sales for whatever you need.
Material: Fused Silica
Two sides polished:
Surface Quality: 40/20 both side
Flatness: lambda/8 @ 633nm
Other surfaces are find ground
Chamfer:95% & Rs>99% @ 355 +/-3nm, AOI=45deg.+/-1 deg.
Tp>95% & Rs>99% @ W +/-5nm, AOI=45deg.+/-1 deg.
Tp>95% & Rs>99% @ W +/-10nm, AOI=45deg.+/-1 deg.
Typical Coating Curve:
Tp>95% & Rs>99% @ 850 +/-10nm, AOI=45deg.+/-1 deg.
